17900 SEK

The Wo has been a staple in our fat bike lineup for a few years now. Its simple, dependable design has made it a favorite for fat bike aficionados everywhere. Running a wide range 11-speed drivetrain, durable cranks, and big ol’ 4.8” tires on tubeless-ready rims, the Wo gets you where you need to go with ease.

SPECIFICATIONS

FRAME MATERIAL Kona Fat 6061 Aluminum Butted

SIZES S, M, L, XL

FORK Kona Wo Fat Disc

CRANKARMS Race Face Ride Fat

CHAINRINGS 28t Wide/Narrow

B/B Race Face 100mm

CHAIN KMC X11

CASSETTE Shimano Deore 11-51t 11spd

R/D Shimano Deore 11spd

SHIFTERS Shimano Deore 11spd

BRAKE CALIPERS Shimano MT201 Hydraulic

FRONT BRAKE ROTOR Shimano RT30 180mm (centerlock)

REAR BRAKE ROTOR Shimano RT30 160mm (centerlock)

BRAKE LEVERS Shimano MT201 Hydraulic

HEADSET Feimin FP-H868B

HANDLEBAR Kona XC/BC 35

STEM Kona XC/BC 35

SEATPOST Kona XC/BC 31.6mm

SEAT CLAMP Kona QR

GRIPS Kona Key Grip

SADDLE Kona Fat

FRONT HUB KT 150x15mm

REAR HUB KT 197x12mm

SPOKES Stainless Black 14g

RIMS Sun Ringle Mulefut 80 Tubeless Ready

FRONT TIRE Schwalbe Jumbo Jim TR 26x4.8"

REAR TIRE Schwalbe Jumbo Jim TR 26x4.8"

PAINT COLOR Matte Plum w/ Oxy Fire Decals

16000 SEK

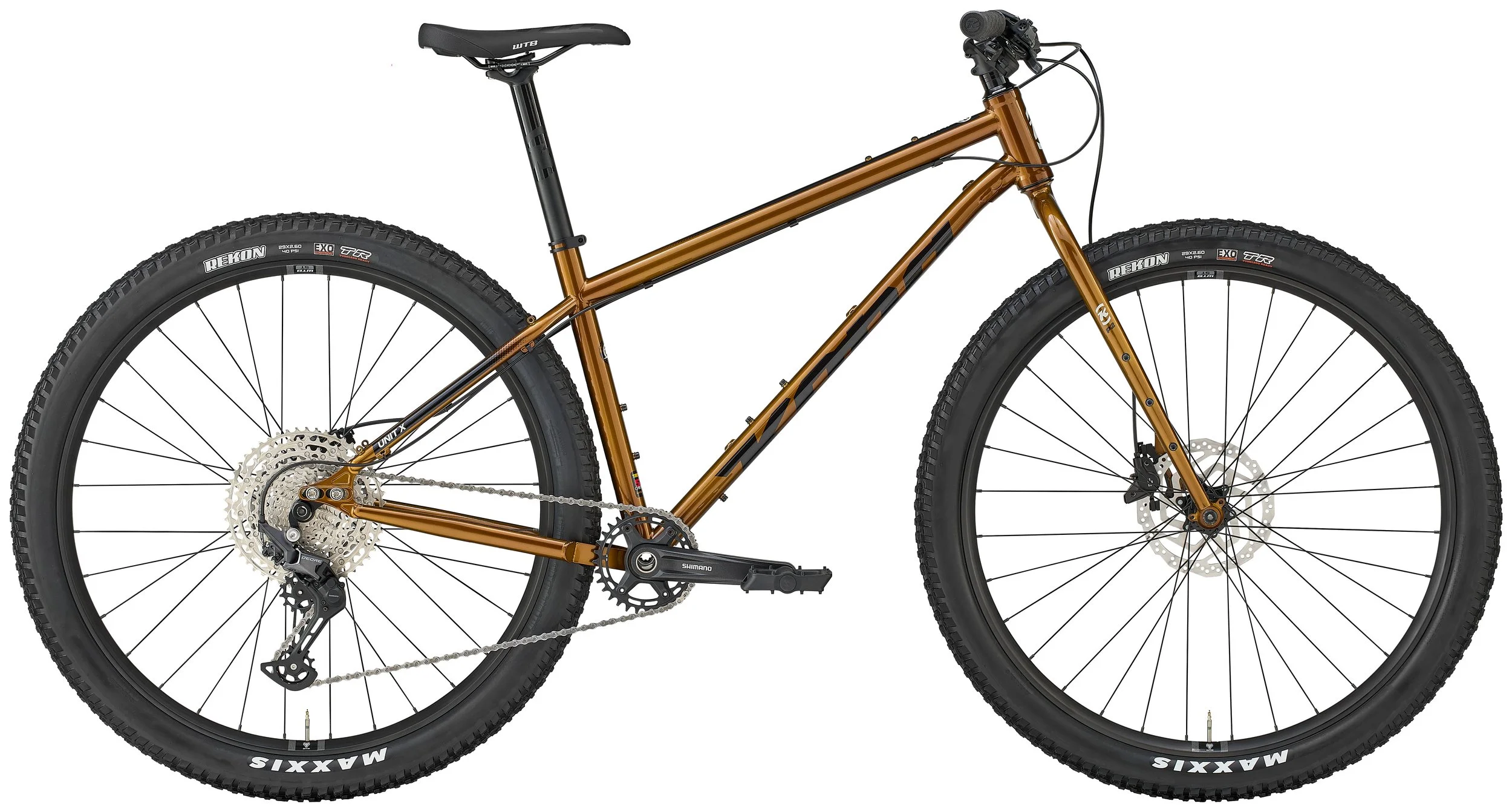

If the Unit were to put out a wanted ad for its ideal rider it might look something like this: Cromoly, single-speed badass ISO someone to adventure with. Some people call me rigid. I think I’m just classy. I like long rides in the sun (or mud, or snow), will carry all your stuff, will last forever, and promise to be the bike that turns heads wherever you go. I can be converted to a 12-speed if that’s your thing. Like food? I have Bento box mounts too! Let’s party!

FRAME MATERIAL Reynolds 520 Butted Cromoly

SIZES S, M, L, XL

FORK Kona Plus Fork 110mm spacing

CRANKARMS FSA Comet Modular

CHAINRINGS 32t

B/B FSA MegaExo 73mm

PEDALS Kona JS2

CHAIN KMC Z1 Narrow

CASSETTE KT 18t

BRAKE CALIPERS Alhonga HT472 Hydraulic

FRONT BRAKE ROTOR Alhonga 180mm

REAR BRAKE ROTOR Alhonga 160mm

BRAKE LEVERS Alhonga HT472 Hydraulic

HEADSET TH ZST No.10

HANDLEBAR Kona XC/BC Riser

STEM Kona XC

SEATPOST Kona Thumb w/Offset 31.6mm

SEAT CLAMP Kona Clamp

GRIPS Kona Key Grip

SADDLE WTB Volt

FRONT HUB Formula 110x15mm

REAR HUB Formula 148x12mm

SPOKES Stainless Black 14g

RIMS WTB ST i30 TCS 2.0

FRONT TIRE Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6"

REAR TIRE Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6"

PAINT COLOR Gloss Metallic Grey w/ Chocolate & Tan Decals

19500 SEK

The Unit X has become a cult favorite among die-hard Kona fans. Maybe it’s the Cromoly frame. Maybe it’s the fact that it’s a bikepacking monster, or its well-geared 12-speed drivetrain, or modular dropouts which give you the ability to run it as a single speed if that’s your thing. Maybe it’s because the rigid fork makes it that much more of a classic. We may never know why the Unit X is such a popular bike, but we can only guess it’s because it is one of the most practical machines in our lineup.

“The Unit X is a perfect gateway drug for new riders to experience all types of riding.” -Adventure Cycling

FRAME MATERIAL Reynolds 520 Butted Cromoly

SIZES S, M, L, XL

FORK Kona Plus Fork 110mm spacing

CRANKARMS Comet 12spd

CHAINRINGS 32t

B/B Prowheel 73mm

CHAIN SRAM NX 12spd

CASSETTE SRAM NX 10-51t 12spd

SHIFTERS SRAM NX 12spd

BRAKE CALIPERS SRAM DB 4 Hydraulic

FRONT BRAKE ROTOR Shimano RT10 180mm (centerlock)

REAR BRAKE ROTOR Shimano RT10 160mm (centerlock)

BRAKE LEVERS SRAM DB 4 Hydraulic

HEADSET TH ZST No.10

HANDLEBAR Kona XC/BC Riser

STEM Kona XC/BC

SEATPOST Kona Thumb w/Offset 31.6mm

SEAT CLAMP Kona Clamp

GRIPS Kona Key Grip

SADDLE WTB Volt

FRONT HUB Formula 110x15mm (centerlock)

REAR HUB Shimano 148x12mm (centerlock)

SPOKES Stainless Black 14g

RIMS WTB ST i30 2.0 TCS

FRONT TIRE Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6"

REAR TIRE Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6"

PAINT COLOR Gloss Bronze/ Black Decals

25000 SEK

If we had to sum up the Hei Hei in one sentence it would be this: The Hei Hei is fast, fun, easy to ride, climbs like a mountain goat, descends like a cheetah, is affordable, has no frills but everything you need with its 120mm of front and 100mm of rear travel, and will ensure that you end every ride with a smile on your face. Run on sentences aside, the Hei Hei has been in our lineup for decades because it’s one of the best bikes we’ve ever made. It blurs the line between XC and trail bike and has proved that great ideas evolve into bikes with staying power.

FRAME MATERIAL Kona Race Light 6061 Aluminum Butted 100mm Travel

SIZES S, M, L, XL

REAR SHOCK RockShox Monarch RL Solo Air

FORK RockShox SID 35 DebonAir 120mm Tapered 110mm Spacing

CRANKARMS Shimano 12spd

CHAINRINGS 32t

B/B Shimano PF92

CHAIN Shimano Deore 12spd

CASSETTE Shimano Deore 10-51t 12spd

R/D Shimano SLX

SHIFTERS Shimano Deore 12spd

BRAKE CALIPERS Shimano MT410

FRONT BRAKE ROTOR Shimano RT30 180mm (centerlock)

REAR BRAKE ROTOR Shimano RT30 160mm (centerlock)

BRAKE LEVERS Shimano MT410

HEADSET FSA No.57B

HANDLEBAR Kona XC/BC 35

STEM Kona XC/BC 35

SEATPOST TranzX Dropper +RAD Internal 31.6mm

SEAT CLAMP Kona Clamp

GRIPS Kona Key Grip

SADDLE WTB Volt

FRONT HUB Shimano 110x15mm (centerlock)

REAR HUB Shimano 148x12mm (centerlock)

SPOKES Stainless Black

RIMS WTB ST i27 TCS 2.0

FRONT TIRE Maxxis Forekaster EXO TR DUAL 29x2.35"

REAR TIRE Maxxis Forekaster EXO TR DUAL 29x2.35"

PAINT COLOR Matte Faux Raw w/ Metallic Mint & Silver Decals

72000 SEK

The Hei Hei CR DL is an enigma of a bike. On the surface it looks like a stealthy XC rig with its 120mm of front and rear travel and gorgeous carbon frame, but when you ride the bike it’s like a whole new world is unlocked. Climbing becomes…fun? Yeah, fun! You’ve heard marketing speak say things like “nimble,” well this is what we’re talking about. This bike likes to dance and you’re gonna want to move along with it. Sure, it’s a steadfast racehorse and has won four 24-hour world championships under Cory Wallace, but it’s also an absurdly fun little machine. Don’t be fooled by what looks like an XC bike on the surface. The Hei Hei CR DL knows how to have a good time and it wants to bring you to the next party.

FRAME MATERIAL Kona Race Light Carbon 120mm Travel

SIZES S, M, L, XL

REAR SHOCK RockShox Sid Luxe Ultimate

FORK RockShox Sid Ultimate DebonAir 120mm Tapered 110mm Spacing

CRANKARMS SRAM Descendant DUB Carbon

CHAINRINGS 34t X-Sync Eagle

B/B SRAM DUB PF92

CHAIN SRAM GX-Eagle

CASSETTE SRAM X01-Eagle 10-52t 12spd

R/D SRAM GX AXS

SHIFTERS SRAM GX AXS

BRAKE CALIPERS SRAM G2 RSC

FRONT BRAKE ROTOR SRAM Centerline 180mm

REAR BRAKE ROTOR SRAM Centerline 160mm

BRAKE LEVERS SRAM G2 RSC

HEADSET FSA No.57E

HANDLEBAR RaceFace Next 35

STEM RaceFace Turbine R 35

SEATPOST RockShox Reverb w/1x Remote Lever 31.6mm

SEAT CLAMP Kona Clamp

GRIPS Kona Key Grip

SADDLE WTB Volt

FRONT HUB DT Swiss 350 110x15mm

REAR HUB DT Swiss 350 148x12mm

SPOKES Sandvik Stainless Black 2.0/1.8 Butted

RIMS WTB KOM Team i30 TCS 2.0

FRONT TIRE Maxxis Rekon Race EXO TR DUAL 29x2.4WT"

REAR TIRE Maxxis Rekon Race EXO TR DUAL 29x2.4WT"

PAINT COLOR Gloss Metallic Grey & Charcoal w/ Black & Grey Decals

82000 SEK

If the Undertaker rode a mountain bike, he’d undoubtedly ride the Process X CR DL. Aimed at nothing but ripping riders on the most technical of terrain, the Process X DL is a monster on the trails. A full carbon frame features high-end components that leave nothing to be desired. 170mm of plush travel ensures that even the biggest hits are well tamed. Clean lines, fewer cables, and more badass than ever before, the Process X CR DL is as stealthy as it is aggressive

“Where the Kona Process X DL did excel, was in exuding a sense of confidence and safety descending, with one tester going so far as to say it rode like, ‘it would take a bullet for me.’”

-Beta Mag

FRAME MATERIAL Kona Carbon 162mm Travel

SIZES S, M, L, XL

REAR SHOCK RockShox Super Deluxe Ultimate Trunnion

FORK RockShox Zeb Ultimate RC2 Charger 2.1 DebonAir 170mm Tapered 110mm Spacing

CRANKARMS SRAM GX-Eagle Carbon DUB

CHAINRINGS 32t X-Sync Eagle

B/B SRAM DUB PF92

CHAIN SRAM GX-Eagle

FREEWHEEL SRAM X01-Eagle 10-52t 12spd

R/D SRAM GX AXS

SHIFTERS SRAM GX AXS

BRAKE CALIPERS SRAM Code RSC

FRONT BRAKE ROTOR SRAM Centerline 200mm

REAR BRAKE ROTOR SRAM Centerline 200mm

BRAKE LEVERS SRAM Code RSC

HEADSET FSA Orbit 1.5 EP ZS

HANDLEBAR Kona XC/BC 35

STEM Kona XC/BC 35

SEATPOST Rock Shox Reverb w/1x Remote Lever 31.6mm

SEAT CLAMP Kona Clamp

GRIPS Kona Key Grip

SADDLE WTB Volt

FRONT HUB DT Swiss 350 110x15mm

REAR HUB DT Swiss 350 148x12mm

SPOKES Double Butted Spokes – 14/15/14g

RIMS WTB KOM Trail i30 TCS

FRONT TIRE Maxxis Assegai EXO+ TR 3C 29x2.5" WT

REAR TIRE Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)

PAINT COLOR Gloss Metallic Indigo w/ Matte Ink & Metallic Bronze Decals

59000 SEK

For the rider looking to go big on terrain but not break the bank, the Process X CR is a perfect choice. A carbon frame is laced with a durable, but practical build to ensure your money goes where it matters. The 170mm of ultra-squishy travel makes quick work of those features you’ve been eyeing up. And don’t be fooled by the numbers, this bike may go big on the descents, but it is built to ensure you make it to the top with plenty of gas left in the tank.

“I’ve had an absolute blast on this rig. For me, the Process X epitomizes what I enjoy in a bike. It can pedal when the going gets tough, it can play with the best of them, and boy, it can hold its own in a drag race.”

-Spoke Magazine

FRAME MATERIAL Kona Carbon 162mm Travel

SIZES S, M, L, XL

REAR SHOCK Fox DPX2 Performance Elite Trunnion

FORK Fox 38 Performance Grip Damper 170mm

CRANKARMS Shimano SLX

CHAINRINGS 32t

B/B Shimano PF92

CHAIN Shimano Deore 12spd

FREEWHEEL Shimano SLX 10-51t 12spd

R/D Shimano SLX 12spd

SHIFTERS Shimano XT 12spd

BRAKE CALIPERS Shimano Deore

FRONT BRAKE ROTOR Shimano RT66 203mm

REAR BRAKE ROTOR Shimano RT66 203mm

BRAKE LEVERS Shimano Deore

HEADSET FSA Orbit 1.5 EP ZS

HANDLEBAR Kona XC/BC 35

STEM Kona XC/BC 35

SEATPOST TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm

SEAT CLAMP Kona Clamp

GRIPS Kona Key Grip

SADDLE WTB Volt

FRONT HUB DT Swiss 370 110x15mm

REAR HUB DT Swiss 370 148x12mm

SPOKES Stainless Black 14g

RIMS WTB KOM Trail i30 TCS

FRONT TIRE Maxxis Assegai EXO+ TR 3C 29x2.5" WT

REAR TIRE Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)

PAINT COLOR Gloss Metallic Dusty Rose w/ Chocolate & Bronze Decals

73000 SEK

The Process 134 CR DL is the Beauty and the Beast of our lineup. It’s sleek, cable-free lines and killer top-of-the-line spec will turn heads all season long. Meanwhile the 134mm of rear travel descends like nothing you’ve ever experienced on a mid-travel trail bike. This bike is our secret weapon. It climbs lightning fast and rips downhills like hungry cougar chasing an ill-fated deer. Sorry, deer. Your time is up.

“The good suspension balance adds confidence and responsiveness when tackling fast consecutive turns. Get into rougher terrain and you soon forget this little bike only has 134mm of travel as it hammers through the chunder, muting smaller bumps impressively.”

-Mountain Bike UK

FRAME MATERIAL Kona Carbon 134mm Travel

SIZES S, M, L, XL

REAR SHOCK RockShox Super Deluxe Ultimate Trunnion

FORK RockShox Pike Ultimate RC2 Charger 2 DebonAir 140mm Tapered 110mm Spacing

CRANKARMS SRAM GX Carbon DUB

CHAINRINGS 32t X-Sync Eagle

B/B SRAM DUB PF92

CHAIN SRAM GX-Eagle

FREEWHEEL SRAM X01-Eagle 10-52t 12spd

R/D SRAM GX AXS

SHIFTERS SRAM GX AXS

BRAKE CALIPERS SRAM G2 RSC

FRONT BRAKE ROTOR SRAM Centerline 200mm

REAR BRAKE ROTOR SRAM Centerline 180mm

BRAKE LEVERS SRAM G2 RSC

HEADSET FSA Orbit 1.5 E ZS

HANDLEBAR Kona XC/BC 35

STEM Kona XC/BC 35

SEATPOST Rock Shox Reverb w/1x Remote Lever 31.6mm

SEAT CLAMP Kona Clamp

GRIPS Kona Key Grip

SADDLE WTB Volt

FRONT HUB DT Swiss 350 110x15mm

REAR HUB DT Swiss 350 148x12mm

SPOKES Double Butted Spokes – 14/15/14g

RIMS WTB KOM Team i30 TCS

FRONTIRE Maxxis Minion DHF EXO TR 3C 29x2.5" WT

REAR TIRE Maxxis Dissector EXO TR 3C 29x2.4" WT

PAINT COLOR Gloss Azure w/ Charcoal & Cyan Decals

55000 SEK

The Process 134 CR is one of our best-selling machines for so many reasons: it’s a carbon-framed bike that won’t destroy your wallet, it features a workhorse Shimano groupset, and it’s good at all the things. Easy on the ups, fun on the downs. Playful? Yep, that too.

FRAME MATERIAL Kona Carbon 134mm Travel

SIZES S, M, L, XL

REAR SHOCK Fox X Performance Elite Trunnion

FORK Fox Float 34 Performance 140mm Tapered 110mm Spacing

CRANKARMS Shimano SLX

CHAINRINGS 32t

B/B Shimano PF92

CHAIN Shimano Deore

FREEWHEEL Shimano SLX 10-51t 12spd

R/D Shimano SLX

SHIFTERS Shimano XT

BRAKE CALIPERS Shimano Deore

FRONT BRAKE ROTOR Shimano Deore RT66 203mm

REAR BRAKE ROTOR Shimano Deore RT66 203mm

BRAKE LEVERS Shimano Deore

HEADSET FSA Orbit 1.5 E ZS

HANDLEBAR Kona XC/BC 35

STEM Kona XC/BC 35

SEATPOST TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm

SEAT CLAMP Kona Clamp

GRIPS Kona Key Grip

SADDLE WTB Volt

FRONT HUB DT Swiss 370 110x15mm

REAR HUB DT Swiss 370 148x12mm

SPOKES Stainless Black 14g

RIMS WTB KOM Team i30 TCS

FRONTIRE Maxxis Minion DHF EXO TR 3C 29x2.5" WT

REAR TIRE Maxxis Dissector EXO TR 3C 29x2.4" WT

PAINT COLOR Gloss Metallic Pewter w/ Charcoal & Turquoise Decals
